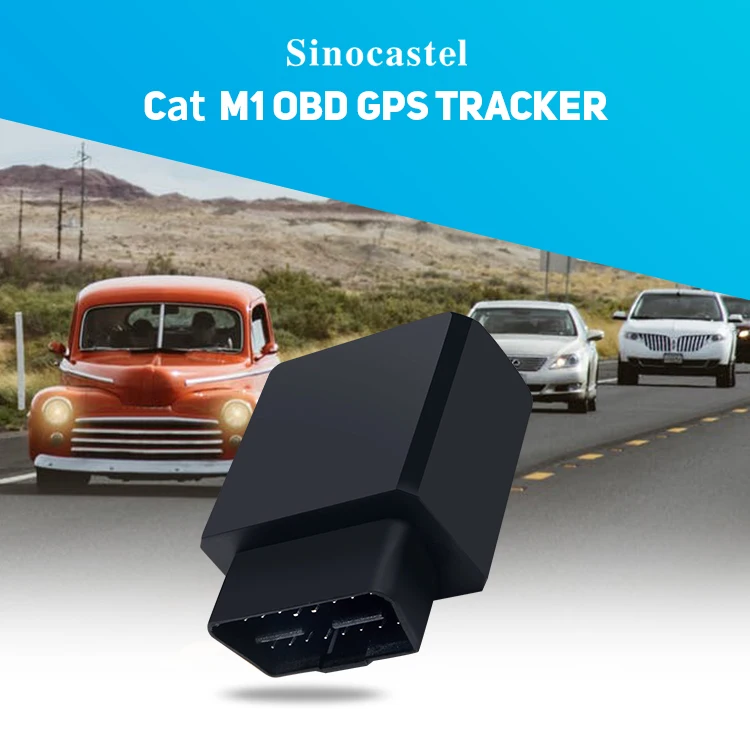

Realtime GPS tracker OBD GPS Tracker

FOB Reference Price:Get Latest Price
$1.00 - $80.00 / Piece | 1 Piece/Pieces (Min. Order)
Screen Size:
gps tracking system
Memory Capacity:
8mb flash, up to 96000 gps storage
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
GPS Tracker
Use:
Automotive
Function:
Cat.M1 OBD GPS Tracker
Place of Origin:
Guangdong, China
Brand Name:
Sinocastel
Model Number:
IDD-213M
Warranty:
12 Months
Product name:
Realtime GPS tracker Cat.M1 OBD GPS Tracker
OBD II Plug and Play:
No installation cost
Live car monitoring:
Google map tracking software
Driving behavior detect:
Speeding, quick slow up/down,idle engine,etc
Mileage monitoring:
Yes
Fuel consumption:
95%+ accuracy
Car engine data:
Live Speed, ECT,RPM and etc
Real time gps tracking:
history trace replay
Certificaton:
E-mark, CE,FCC,PTCRB,Design Patent
Data transmission:
Packet data (LTE) and SMS
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Cat.M1 OBD GPS Tracker
Packaging & Delivery
Packaging Details
1pc/gift box;48pcs/ctn
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 To be negotiated

Realtime GPS tracker OBD GPS Tracker







Mechanical

Size

63mm (L) x 48mm (W) x 28mm (H)

Weight

50g

Interface

OBD interface: 16 pin standard OBD II

Configuration interface: Micro-USB

SIM card interface: Micro SIM, Push-Push Type

Data transmission

Packet data (LTE) and SMS

Positioning method

GPS

Storage

2MB FLASH, up to 24,000 GPS data storage

OBD protocol

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO 14230-4

ISO 15765-4

SAE J1939

SAE J1587/J1708

Power

Working Voltage

9-36VDC

Working Current

Max.: <200mA#13.8/27.6VDC

Average: <150mA#13.8/27.6VDC

Sleep mode: <10mA#12/24VDC

Backup battery

3.7V/160mAH

GPS

Channels: 66

Sensitivity: -165dBm

Accuracy: 5m CEP

Time to first fix:

Cold start: <30s (typ.)

Hot start: <1s (typ.)

Cellular

Frequency:

FDD LTE B4/B13 (Verizon)

FDD LTE B2/B4/B12 (AT&T)

Data:

  CAT M1: DL/UL Max. 300/375kbps

Network protocol: Embedded TCP/IP stack

Certification:

GCF, FCC, PTCRB, IC, Verizon, AT&T

6-axis IMU

Driving behavior detection

LED Indication

GPS/Cellular/OBD indication

Buzzer

System status/Alarm indication

Antenna

Cellular

Internal

GPS

Internal

Accessories

Configuration cable

OBD II extension cable

9-Pin deutsch wiring harness

6-Pin deutsch wiring harness

Power cable

Environment

Working Temperature

-30 ~ +70

Storage Temperature

-40 ~ +85

Humidity

5%~95%(no fog)







 1.what is OBD&OBDII?

OBD(On-board diagnostics)is an automotive term referring to a vehicle's self-diagnostic and reporting capability. OBD systems give the vehicle owner or repair technician access to the status of the various vehicle sub-systems. Modern OBD implementations use a standardized digital communications port to provide real-time data in addition to a standardized series of diagnostic trouble codes, or DTCs, which allow one to rapidly identify and remedy malfunctions within the vehicle.



2.what is the obd gps tracker?

gps tracker intergrate with OBD protocol

3.what is the different OF 213GL, IDD-213E and IDD-213N?

213GL for GSM sim card,213E&213N for WCDMA sim card, 213E for Europ market,213N for North America market

4.You obd gps tracker support or doesn't support SIM card

All obd serial product Support SIM card

5.How does the device work?

download PCTOOL from Sinocatel website, use USB cable connect computer set APN and others data, plug and play with vehicle.

6.what is the Frequency of the simcard?GSM and WCDMA?

GSM Frequency: 850/900/1800/1900MHz, WCDMA Frequency:800/850/900/2100(Europ),800/850/1700/1900(North America)

7.Does your tracker have SMS alerts?

Yes, SMS alerts from phone



8.Does your system free to use?

free half year, get pay after half year, can provide the charge list if you need.

9.Does your system have smartphone APP?

yes, APP name UUAID and Palm fleet, download from wesbite.
